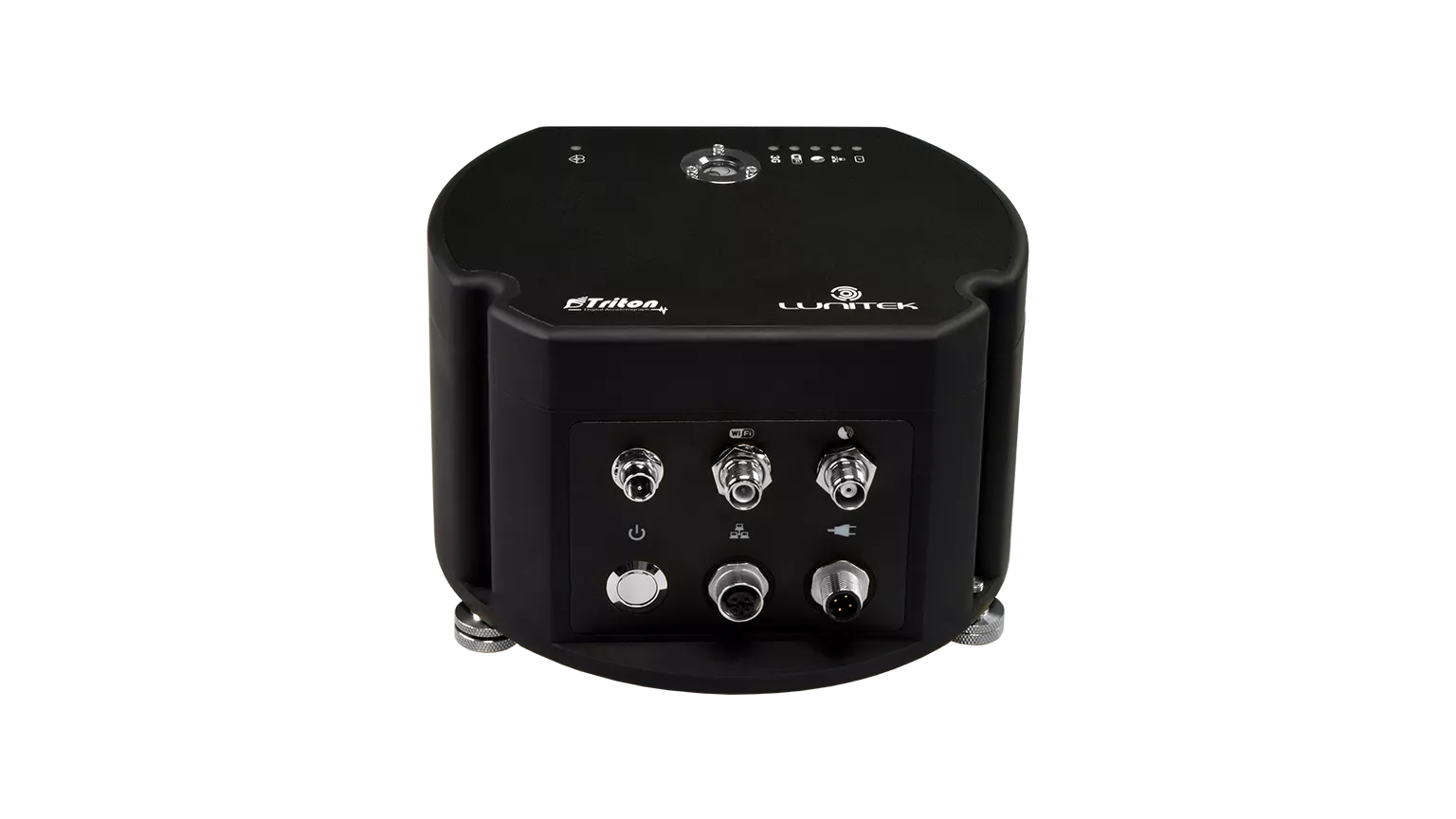

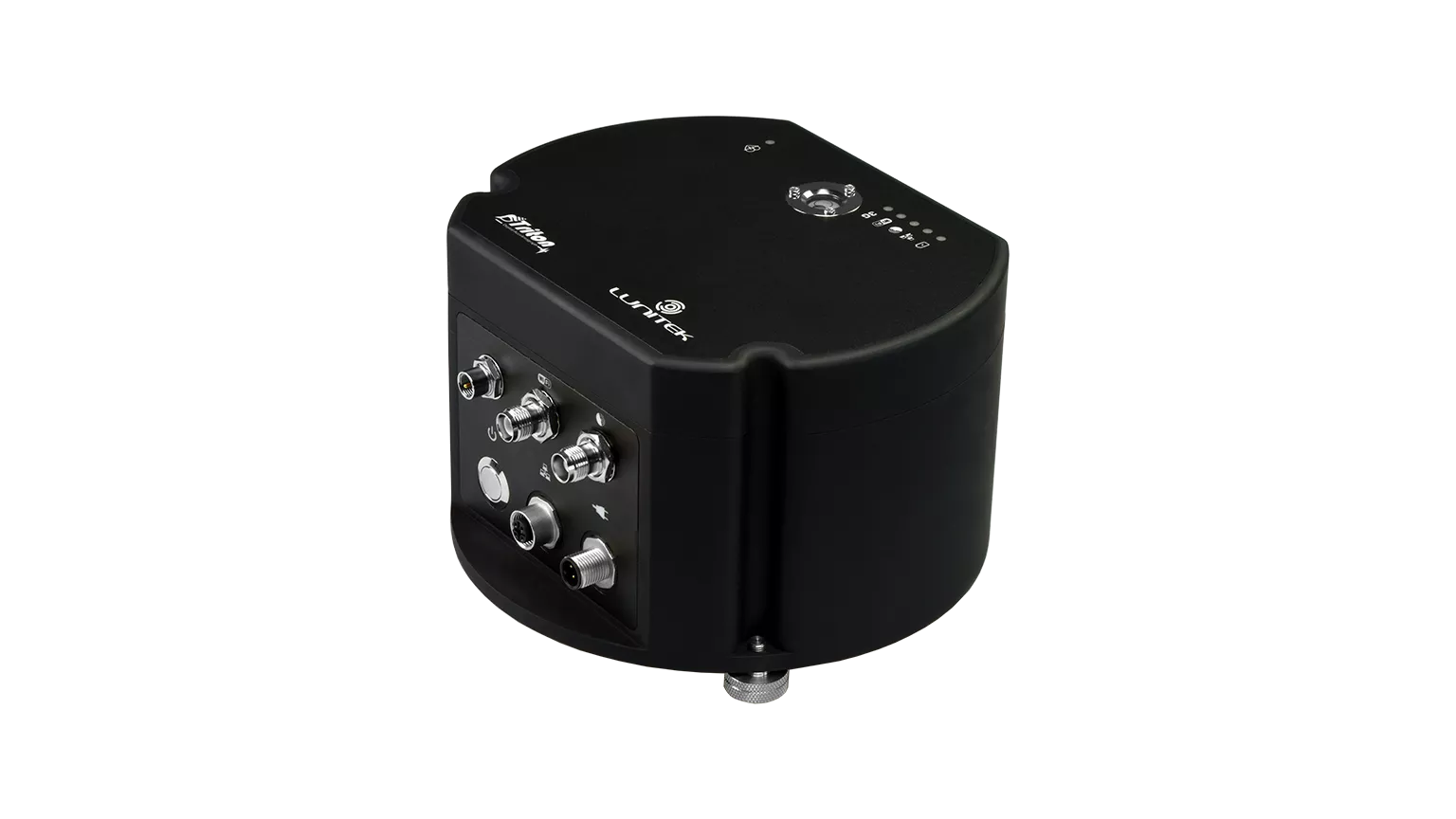

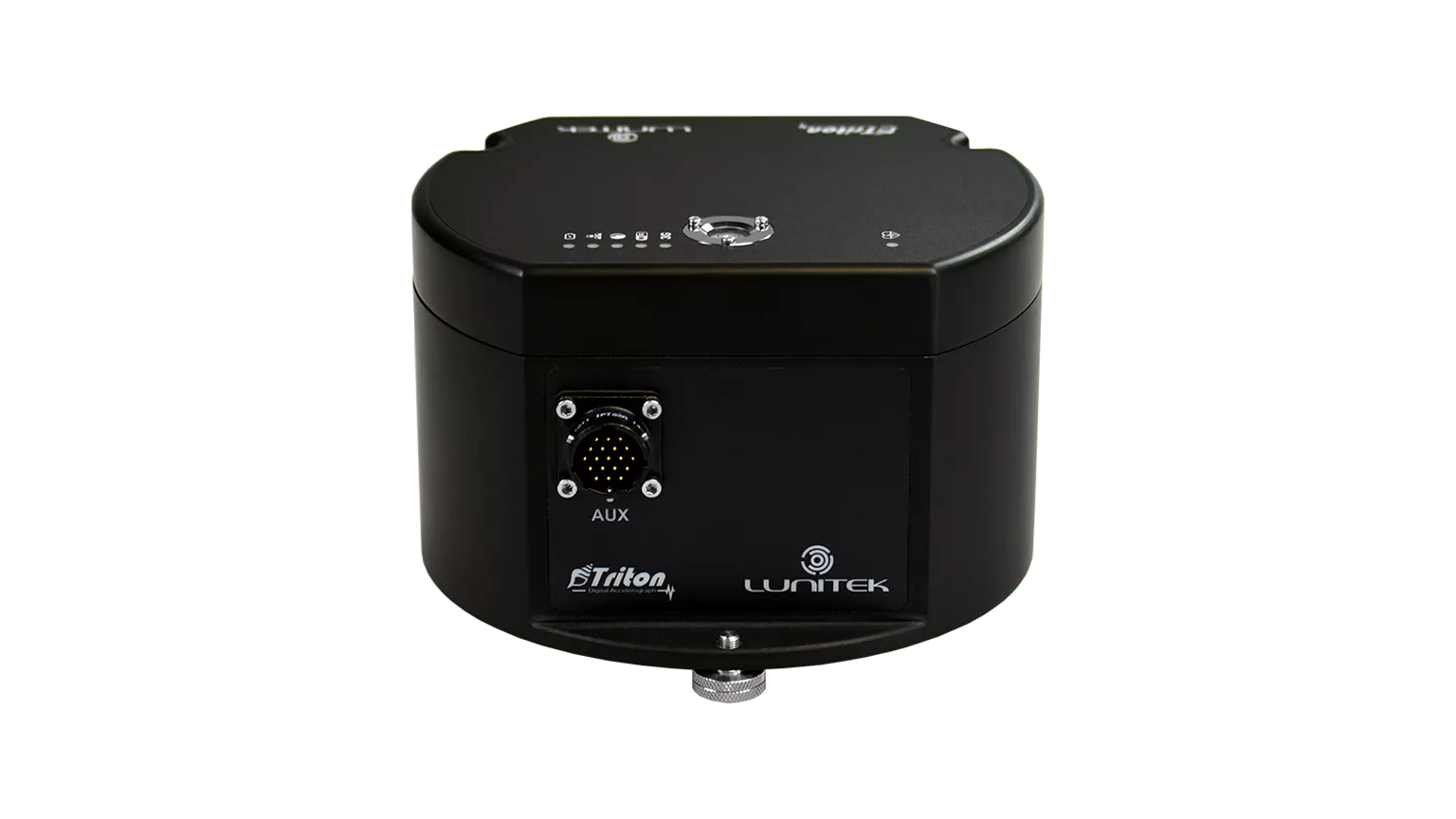

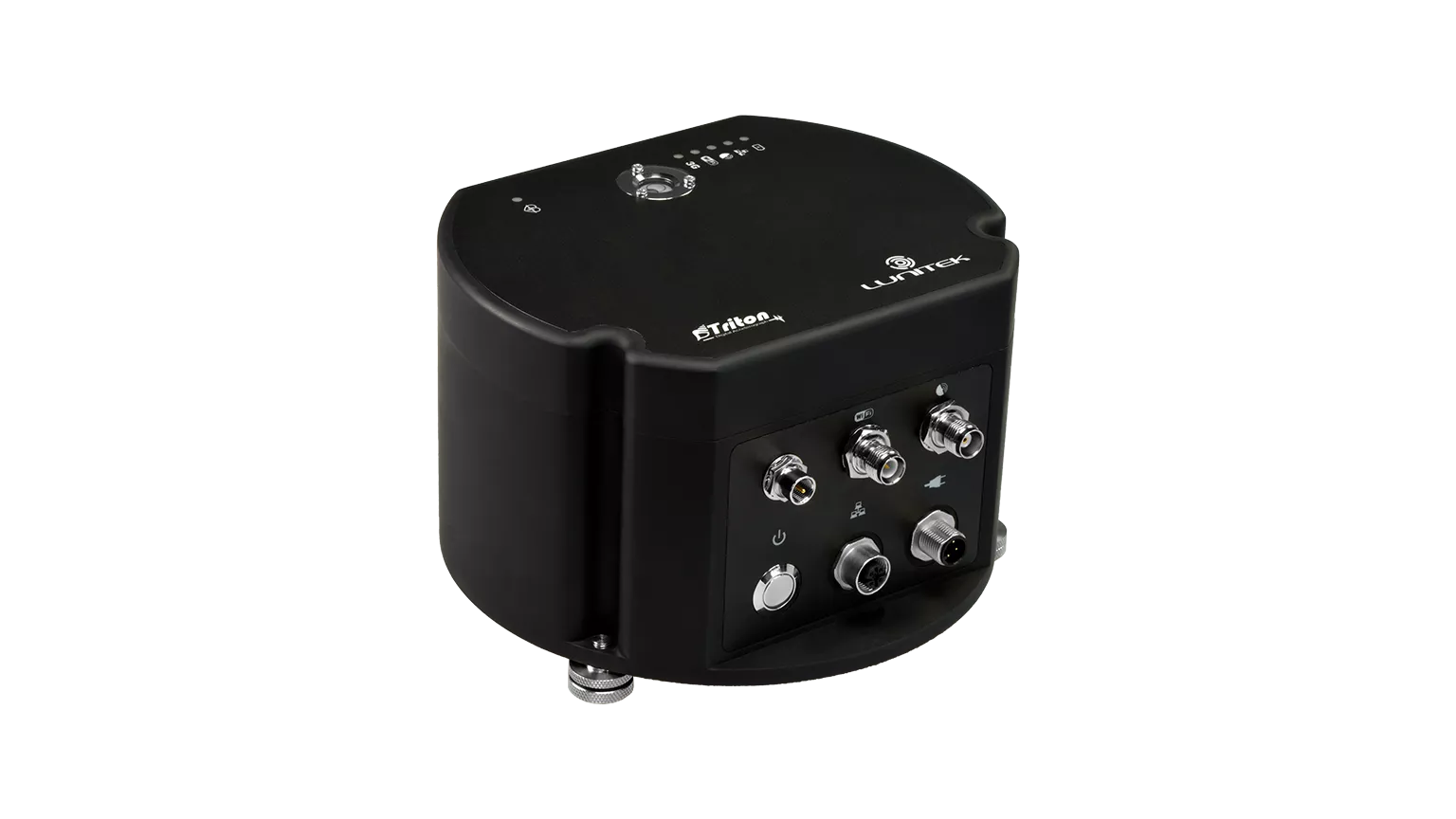

TRITON Seismograph
Triton Seismograph is an integrated data acquisition system plus sensor which was conceived for applications where a combined and space-saving solution are required.
Very low seismic noise levels are achieved thanks to the sensor being shielded inside the enclosure and to the short wiring.
Triton Seismograph is available with geophones or with short/broad band sensor. Broad band models are available in 30s, 60s and 120 seconds.
The Triton Seismograph can be equipped with an extra inputs for 3 or 6 24-bit channels. In this configuration, in addition to the internal sensor, the instrument can be externally connected to two other high dynamic sensors.
MODELS
Triton-4.5
High Resolution Recorder combined with 4.5Hz or 2Hz high quality geophones
Triton-1s
High Resolution Recorder combined with 4.5Hz high quality geophones and ad-hoc electronics to extend low frequency sensitivity down to 1s.
Triton-5s
High Resolution Recorder combined with 2Hz high quality geophones and ad-hoc electronics to extend low frequency sensitivity down to 5s.
Triton-30s
High Resolution Recorder combined with broadband seismometer. Response: 30s -100Hz
Triton-60s
High Resolution Recorder combined with broadband seismometer. Response: 60s -100Hz
Triton-120s
High Resolution Recorder combined with broadband seismometer. Response: 120s -100Hz
DIMENSIONS
